A gear coupling is a type of coupling that is often used with high torque or high-power output. Gear couplings are typically able to withstand more torque than universal joints, whereas universal joints produce less vibration. A gear coupling is made up of a two-part hub with internal and external teeth and an external or internal sleeve.

Features:

• Minimum backlash
• High bore capacity (Upto 710mm)
• High power to weight ratio
• Accommodates Parallel, Angular and Axial Misalignment
• Can be used up to 120 degrees Celsius. It can be used in even high temperatures if proper oil and lubrication is used.

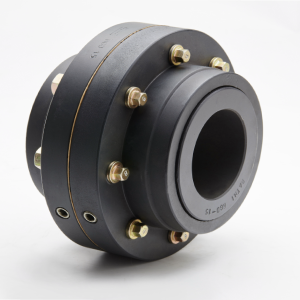

A gear coupling is a type of coupling that is often used with high torque or high-power output. Gear couplings are typically able to withstand more torque than universal joints, whereas universal joints produce less vibration. A gear coupling is made up of a two-part hub with internal and external teeth and an external or internal sleeve.

Features:

• Conforms to AGMA Standard
• RGD / RGS are interchangeable
• High Misalignment capabilities
• Better fastener design
• High Torque rating


Sleeve-Flex assembly can be done quickly and efficiently, since there are no bolts, gaskets, covers, or seals. Alignments can be checked with a straight edge placed on the outside of precision-machined flanges. The teeth of the sleeve lock into the teeth of the flanges without screws or clamps, tightening under torque to provide smooth transmission of energy.

Features:

• No Lubrication required
• No Maintenance required
• Easy Installation
• Not affected by abrasives, dirt or moisture.
• Quiet Performance


Gear couplings are characterized by their mechanical flexibility and compensation for angular, parallel, and axial misalignments of the connected shafts. Flexible Gear Couplings consist of two hubs, with crowned external teeth and two internal sleeves with crowned spur teeth.

Features:

• High Mechanical Flexibility- Crowned and Curved Tooth profile
• Excellent power carrying capacity
• Materials are made with carbon steel or cast hubs with hardened teeth
• Torque: 1100 – 14,70,000 Nm
• Bore Capacity is 710mm.

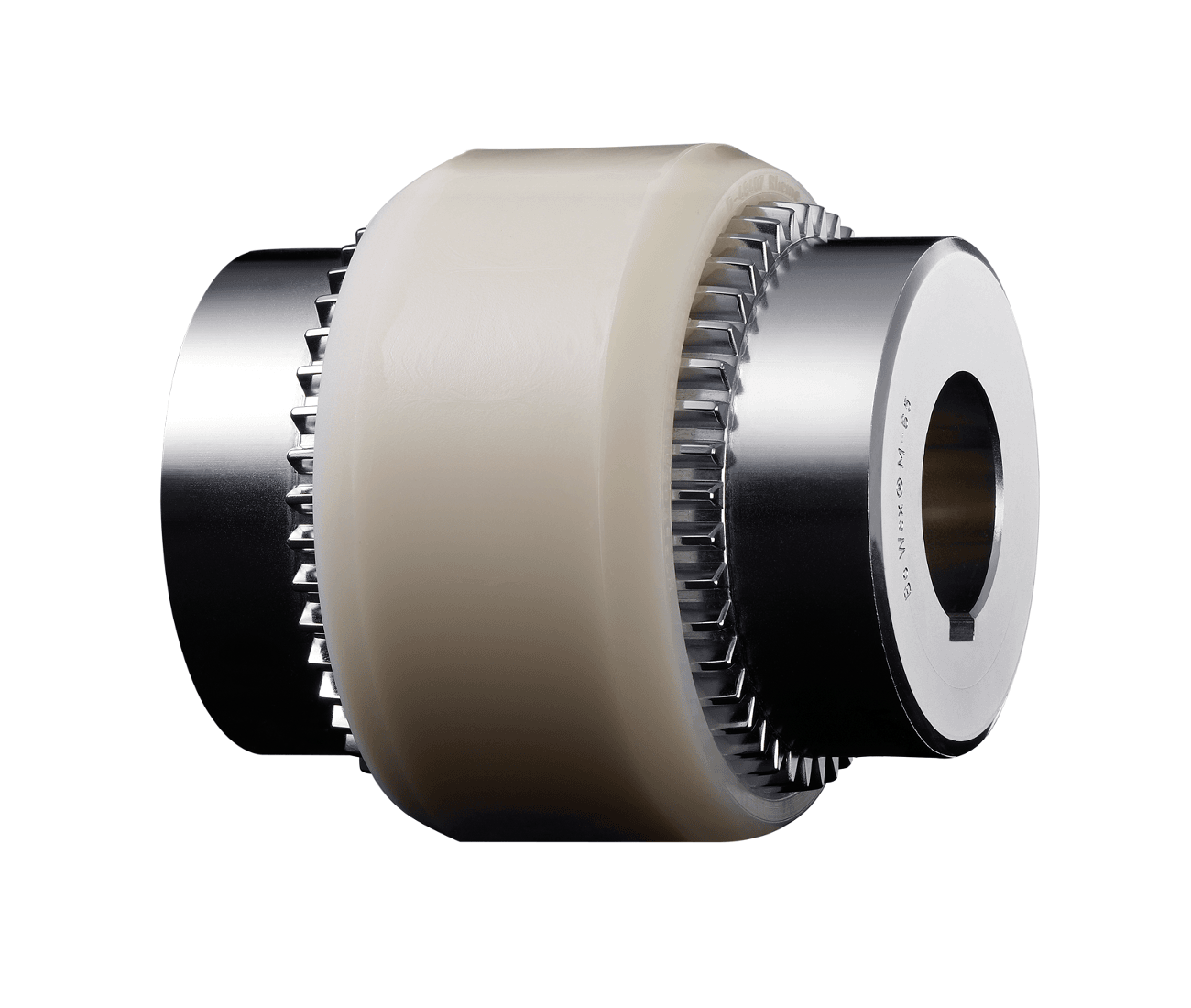

BoWex M double-cardanic gear coupling is suitable for a variety of general engineering purposes as well as hydraulics. The nylon/steel material of our couplings enables maintenance-free operation, grease or oil lubrication can be done without the use of fluid. The Sleeve of the coupling are available in Nylon / Polyamide whereas the hubs are available in Steel/ Stainless steel. If DBSE is more, the coupling can also be manufactured with a spacer. Special design request can also be catered.

Features:

• Maintenance free
• Lengthened hubs can be made on request
• It can be used for all general-purpose engineering and Hydraulic applications
• For Hydraulic pumps, Coupling can be manufactured in Taper and Inch bore
• Spline hubs can be manufactured on request

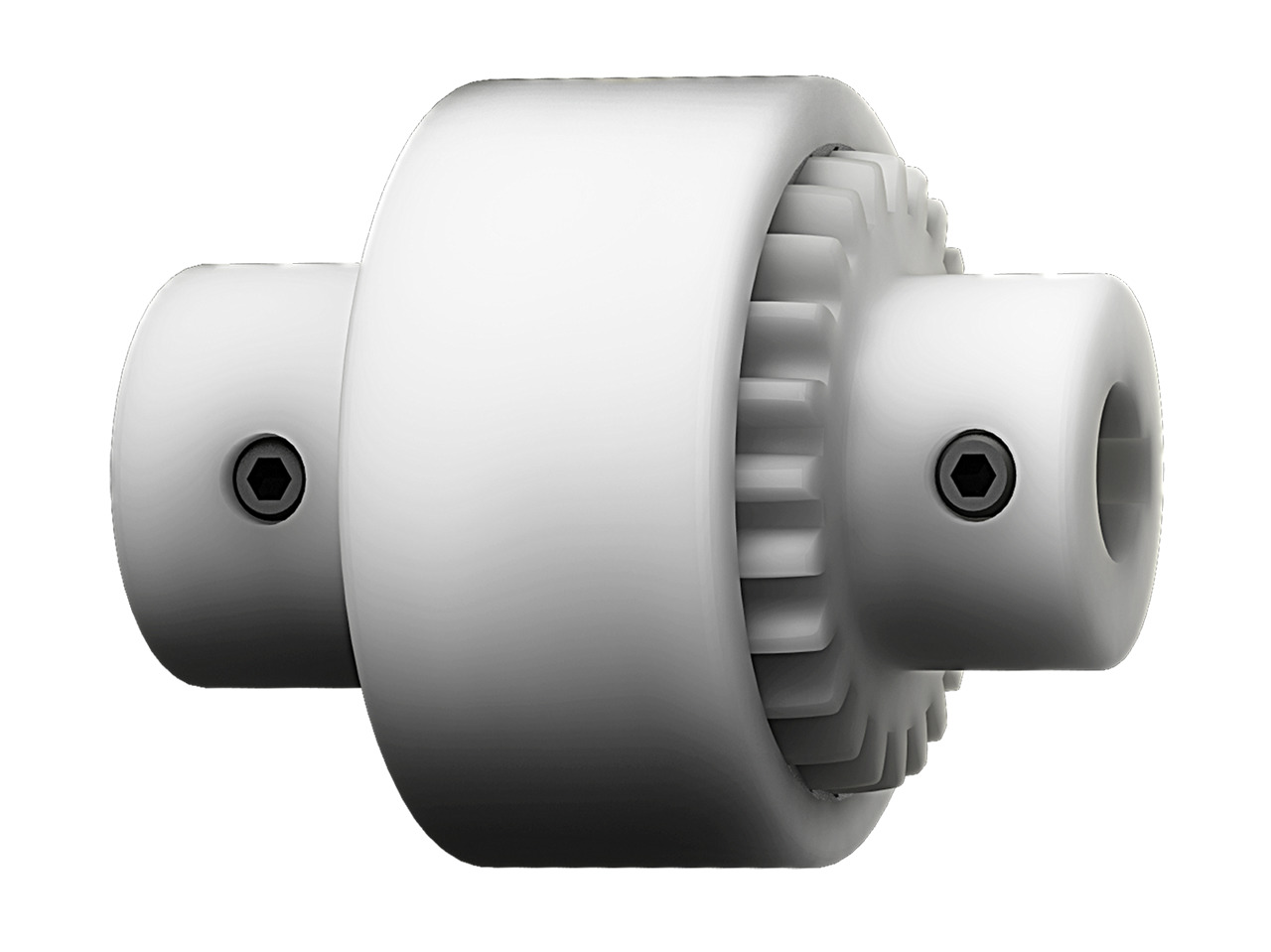

The BoWex Junior series curved-tooth tip is made of Nylon and is a low-cost version for small performance ranges. The single cardanic gear coupling has a low net weight and is in stock with finished bore for Standard shafts and feather keyway. The BoWex junior gear coupling is suitable for compensating for axial and angular shaft displacements. It is available in 2 or 3 part design.

Features:

• Maintenance-free
• Low moments of inertia
• Application ranges from -25 °C to +100°C
• Easy Installation
• Corrosion Protected

The placement of the hubs of the GEARex all-steel gear coupling can make for a very short shaft distance, regular shaft distance and short shaft distance along with a different mounting position of hubs as per customer requirement. The hubs of the gear coupling can be locked and are connected to the coupling sleeve with threaded joints or interference fit. The construction of the sleeve and hub enables transmission of high amounts of torque.

Features:

• Torque up to 135,000 nm
• Hubs can be turned inside and outside as per customer requirement
• Manufactured to AGMA Standard
• Short design which enables transmission of high torque in space constrained application
• High Power Density

The placement of the hubs of the GEARex all-steel gear coupling can make for a very short shaft distance, regular shaft distance and short shaft distance along with a different mounting position of hubs as per customer requirement. The hubs of the gear coupling can be locked and are connected to the coupling sleeve with threaded joints or interference fit. The construction of the sleeve and hub enables transmission of high amounts of torque. The cover design helps the coupling be mounted to the shaft easily.

Features:

• Torque up to 27,50,000 nm
• Hubs can be turned inside and outside as per customer requirement
• Manufactured to AGMA Standard
• Short design which enables transmission of high torque in space constrained application
• High Power Density


ED Series provides exceptional torque capacity while effectively handling misalignment and shock loads. Crafted from high-quality materials, they exhibit resilience in the harshest industrial settings. They are an ideal choice in industries such as Cement, Steel, Mining, Oil and Gas, etc.

Features:

• Accommodates Mis-alignment
• They have Multi-crowned teeth at the Flank, tip, and chamfering on teeth.
• High Torque Transmission
• Keyways According to DIN:6885 Part-1
• High bore capacity up to 540mm and torque ratings upto 1100000 NM
